Självgängande och gängpressande skruv

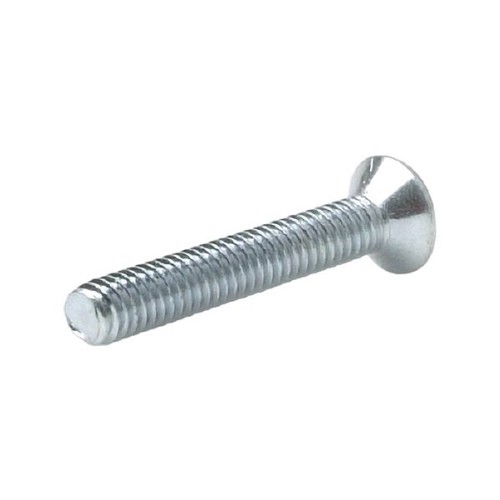

DIN / ISO Norm: DIN 7982 C/ISO 7050 C. Countersunk. Phillips.

DIN / ISO Standard: DIN 7983C. With domed head. Phillips (PH).

DIN / ISO Standard: DIN 7981C. With lumpy head. Phillips (PH).

DIN / ISO Norm: DIN 7981 C with pointed head, Pozidrive (Z).

DIN / ISO Norm: DIN 7981 F with flat end, Torx

DIN / ISO Norm: DIN 7981 C with lumpy head, Torx. Bright galvanized.

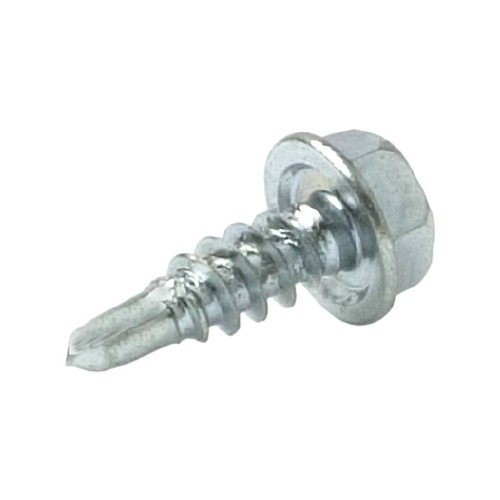

DIN / ISO Norm: DIN 7504 K. Self-drilling and threading.

Drilling and thread pressing screw with B thread for steel and aluminium. Drilling capacity up to 5.5 mm material thickness.
Materials: Case-hardened steel. Corrosivity class C1.
Surface treatment: Bright galvanized.

DIN / ISO Norm: DIN 7500 Thread pressing screw. Torx.
Recommended drill diameter:
M2.5 = 2.25-2.35 mm
M3 = 2.7-2.8 mm
M4 = 3, 6-3.75mm
M5 = 4.5-4.7mm
M6 = 5.45-5.65mm

Gang-pressing. Torx. FZB. DIN / ISO Norm: ISO 7045.
Recommended drill diameter:
M2.5 = 2.25-2.35 mm
M3 = 2.7-2.8 mm< BR>M4 = 3.6-3.75 mm
M5 = 4.5-4.7 mm
M6 = 5.45-5.65 mm
M8 = 7.3-7.6 etc

Flange screw. Thread pressing screw. DIN / ISO Norm: DIN 7500D.
Recommended drill diameter:
M3 = 2.7-2.8 mm
M4 = 3.6-3.75 mm
M5 = 4.5-4.7mm
M6 = 5.45-5.65mm
M8 = 7.3-7.6mm
M10 = 9.2-9.5mm
